5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Ime izdelka: telo ulične svetilke
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeks vodotesnosti: IP66 IP67
Indeks protipotresne odpornosti: IK08 IK09
Delovna temperatura (℃): -20-60
Barva površine: temno siva, svetlo siva, črna, prilagojena itd
Contain Accessories : Complete finished street lights
Lastnosti izdelka
- Aluminijasto ohišje je izdelano iz ADC12 aluminijevega tlačnega litja, površina pa je obdelana s pršenjem za preprečevanje korozije in obstojnost barve.
- Zasnova rebra hladilnika velike površine za hitro teorijo v korist konvekcije med hladnim in vročim zrakom, za ohranjanje dobrega odvajanja toplote žarnic in podaljšanje svetlobe skozi celotno življenjsko dobo.
- Napajalna škatla, da bo svetilka popolna in enotna.
- Zasnova prezračevanja za preprečevanje prahu in stoječe vode za doseganje dolge življenjske dobe svetlobe.

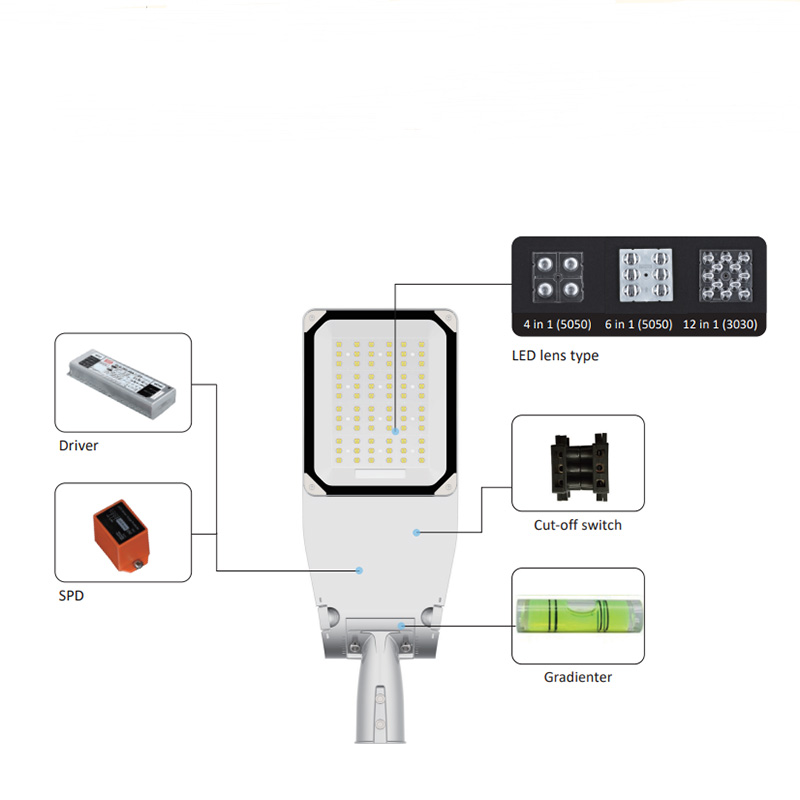

Product Details

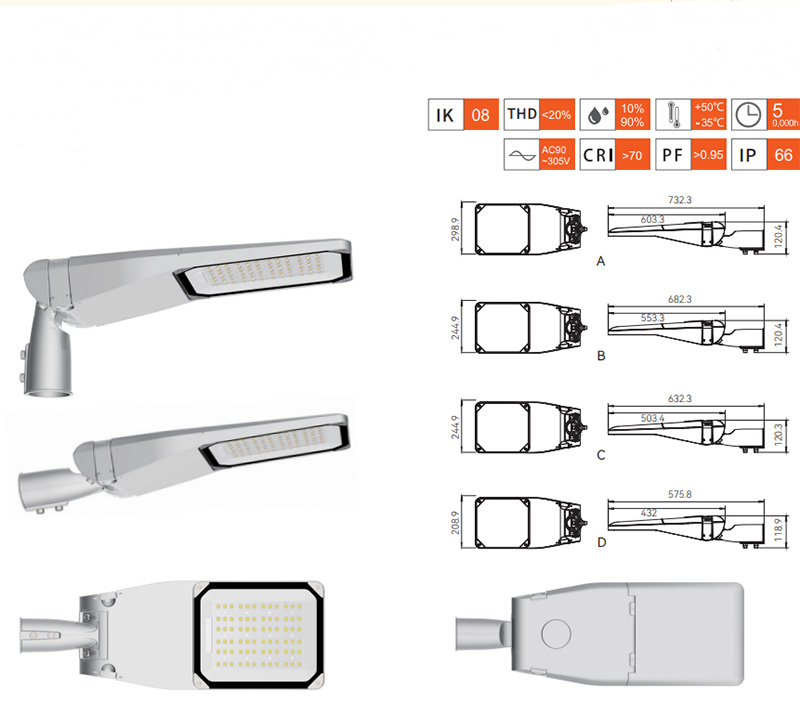

Product Size Chart
Specifikacija in dimenzija
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP razred | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Material | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co., Ltd. je proizvajalec ohišij za LED luči iz tlačnega litja aluminija z različnimi lastnimi razvitimi oblikami in tehnologijami.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
